Advanced Pollution Instrumentation, Inc.
Single/Multi-Channel Ozone Analyzer
Model 450

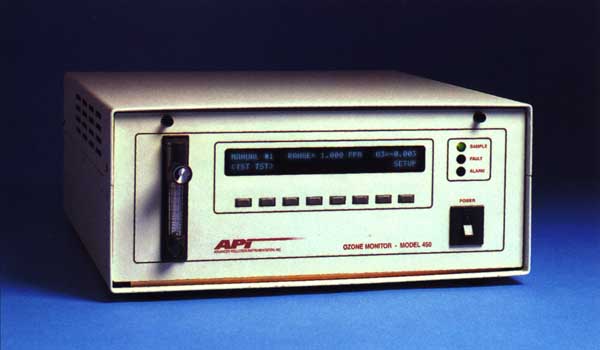

API Model 450 Ozone Analyzer

Features

  • UV Absorption Method
  • Microprocessor controlled
  • Menu driven software
  • Lower detectable limit 3 ppb
  • Built in diagnostics
  • Self-check warning alarms
  • Fast response times
  • Minimal zero drift
  • 1, 3 and 6 channel versions available
  • Programmable concentration alarms
  • Temperature and pressure compensation (standard)
  • Ozone destructor (standard)
The Model 450 UV Photometric Ozone Monitor is an extremely stable analyzer, ideal for critical low-level ppm safety and process applications. Its calibration is NIST traceable and the included pressure and temperature compensation ensure high accuracy. The Model 450 is available either as a single stream unit or as a multi-channel unit capable of monitoring up to six individual sample streams. The Model 450 has been designed to deliver excellent performance, high reliability and simple operation.

Operating parameters can be easily set up in the field using the operator-friendly menu driven software. Built-in diagnostics provide warning signals if the analyzer malfunctions. Test values can be viewed while the Model 450 is operating. These displays, warnings, and self-diagnostics, along with plug-in cards, allow the Model 450 to be quickly repaired. In addition, any function that can be set or monitored from the front panel keyboard display can be set or viewed through the bi-directional RS-232 port.

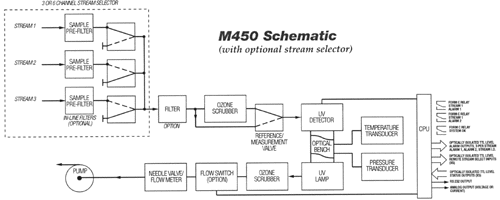

Model 450 Schematic

Specifications

Measuring Principle:UV Absorption (Beer Lambert Law)
Measurement Range:0-1 to 0-1000 ppm operator selectable standard; 0-5 to 0-5000 ppm ophonal
Units:ppmv, ppbv, ppmw, pphm, pg/m3, mg/m3 operator selectable
Precision/Repeatability:±0.1% of full scale
Resolution:.001 ppm
Linearity:1%
Zero Drift:.005 ppm/month, non-cumulative
Lower Detectable Limit (LDL):.003 ppm
Response Time:<30 seconds to 95%
Relay Mode:Latching/non-latching, operator selectable
Temperature Compensation:Standard
Pressure Compensation:Standard
Stream Selector Cycle Time:1 minute to 120 minutes, operator selectable
Sample Flow Rate:1 to 2.5 liters/minute
Temperature Range:5°C to 45°C
Dimensions (HxWxD):7" (178 mm) x 17" (432 mm) x18.2" (463 mm)
Weight:28 Ibs (13 kg)
Power:100-240 VAC, 50/60 Hz
Approvals:CE Mark
Analog Output (Bi-Polar)100mV, 1V, 5V, 10V (operator selectable); 4-20mA or 0-20mA isolated outputs ophonal
Status Outputs:System OK, Low Flow (option), Pressure, Temperature, UV Lamp Fault
Stream I.D. Outputs:Channel 1 through 6
Control Inputs:Channel 1 through 6, remote selection
RS-232:DB-9 connector (option)

Configuration Options

Model 450-S Single Stream Analyzer
Model 450-3 Three Stream Analyzer
Model 450-6 Six Stream Analyzer

All models include:

Maximum range options: Voltage/frequency options: Output voltage options: Additional Options: Accessories:
